Electronic Testers And Cards

Accuracy

16-bit ADC and 12-bit DAC resolution provide high measurement and generation accuracy, suitable for both complex engineering work and everyday hobby projects

Reliability

Built-in protections against over-voltages, over-currents and other disturbances make this unit extremely reliable and durable

Flexibility

A wide choice of digital and analogue interfaces, together with expansion options, makes it easy to adapt the unit to any task

Easy To Use

Although the unit has a wide range of advanced features, its use is intuitive and suitable for both professionals and beginners

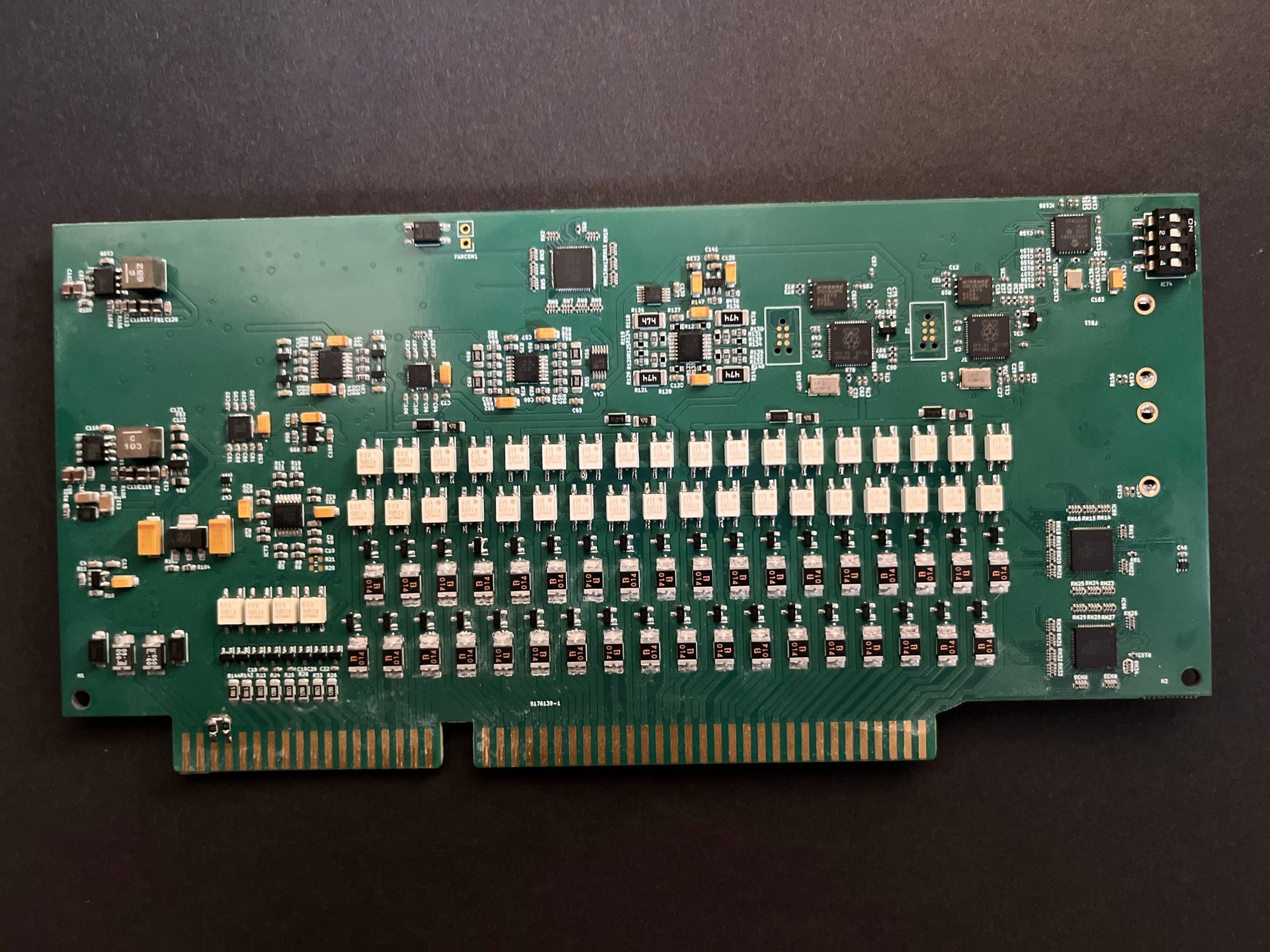

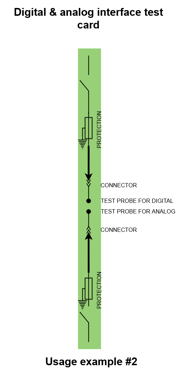

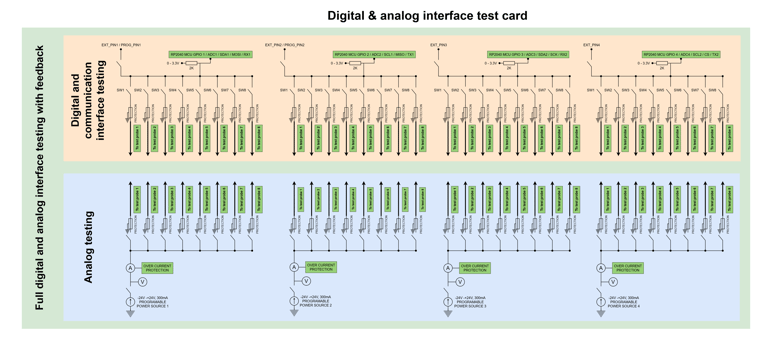

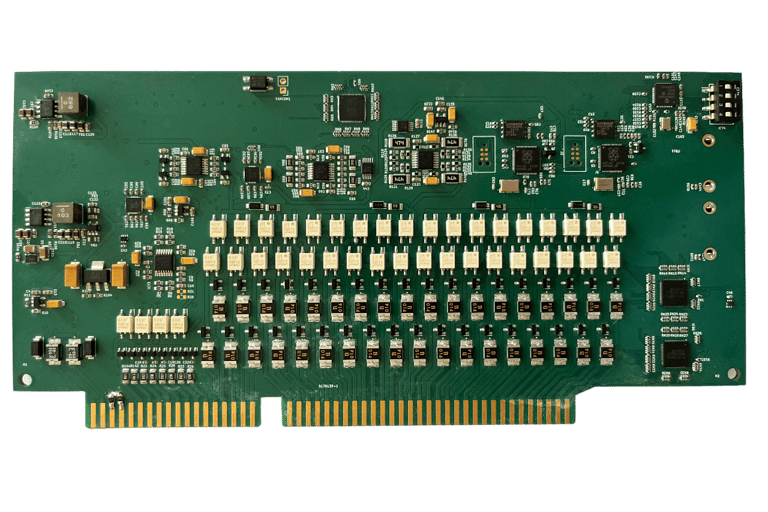

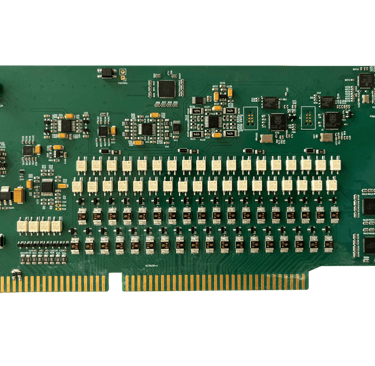

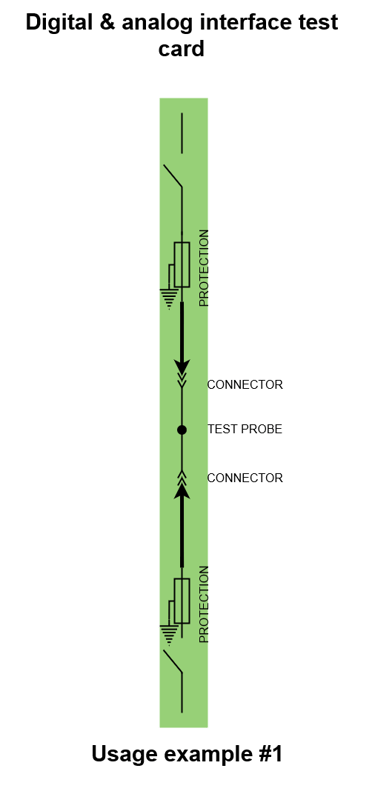

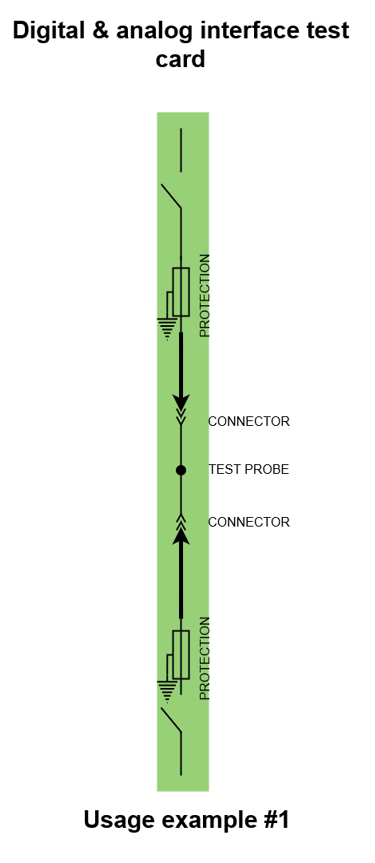

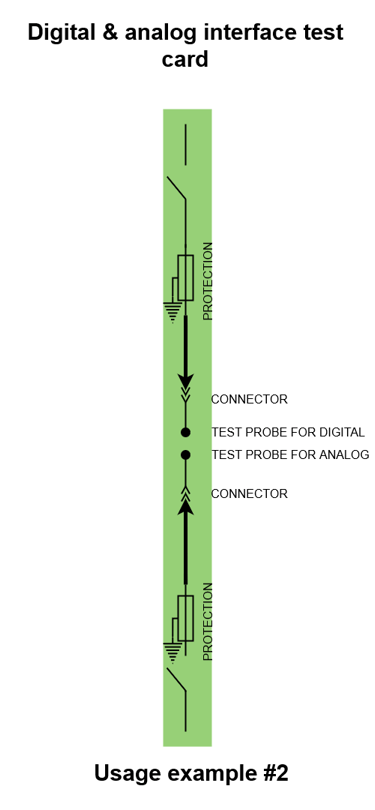

Digital & analog interface test card

Analog I/O Channels:

4 Main Channels:

Each channel is branched into 9 channels (36 channels in total), allowing measurement and generation of analogue signals.

Voltage measurement:

From -30V to +30V and current measurement from -300mA to +300mA.

Resolution:

16-bit ADC for high measurement accuracy

Digital I/O Channels:

4 Main Channels:

Each channel is branched into 9 channels (36 channels in total) supporting a variety of digital signals.

Interfaces:

Supports GPIO, UART, I2C, SPI with voltage levels 1.2V, 1.8V, 3.3V and 5V.

RP2040 Microcontroller:

Integrated for controlling digital signals, allows easy implementation and control of test algorithms.

USB Hub and Expansion Capabilities:

4 Channel USB Hub:

2 ports for RP2040 microcontrollers, 2 ports free for connecting your programmers or other devices.

Daisy Chain Functionality:

Up to 16 EDGE IO boards can be connected and synchronized via a USB virtual COM port using simple commands.

Protection and Calibration:

Self-testing and Calibration Circuits:

Built-in features allow continuous monitoring of component performance and automatic calibration, ensuring accuracy and fault protection.

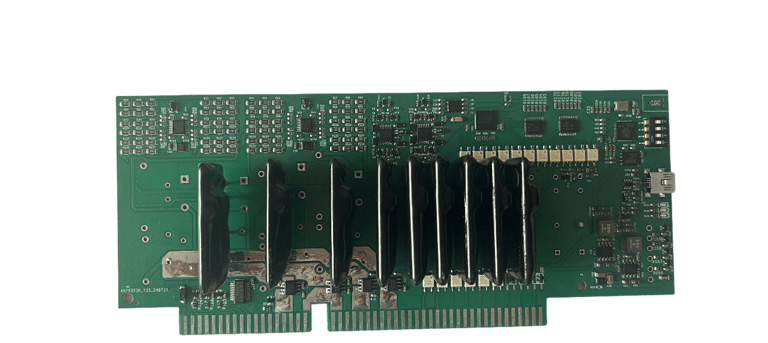

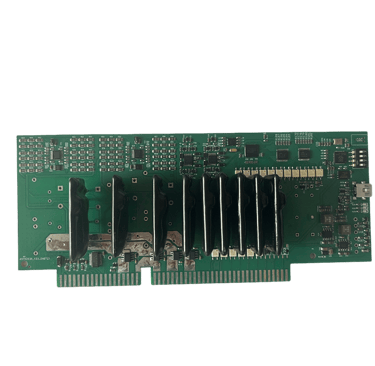

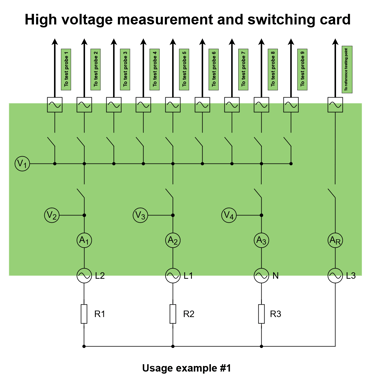

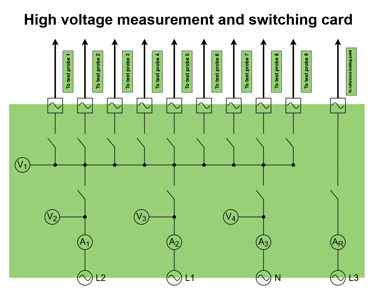

High voltage measurement and switching card

Flexible

It features a smart switching system that allows you to connect any of three input sources to any of nine output destinations, providing versatility in managing multiple devices

Voltage measurement

This card can measure high voltage levels, ensuring that everything operates within safe limits, perfect for environments with up to 680VAC

Safety

Engineered to handle currents up to 5A, this card ensures safe operation while keeping a close watch on electrical performance

Input and Output Channels:

Input channels:

3 high voltage input channels, enabling versatile integration with different loads.

Output Channels:

9 output channels for comprehensive connectivity options, facilitating multi-load management.

Measurement Capabilities:

Voltage Measurement:

Measures differential voltage, providing accurate readings against a defined reference channel.

Current Measurement:

Measures differential current to assess the performance and integrity of the electrical system.

Operating Limits:

Maximum Current:

The card supports a maximum continuous current of 5A, ensuring safe operation within high voltage applications.

Voltage Rating:

Designed to handle input voltages up to 680VAC, making it suitable for high voltage environments.

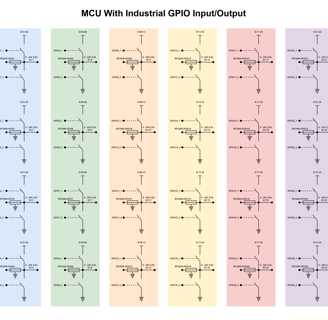

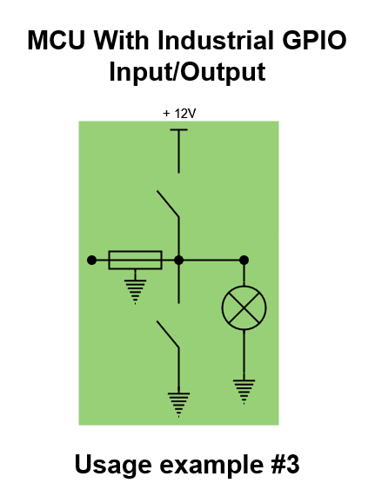

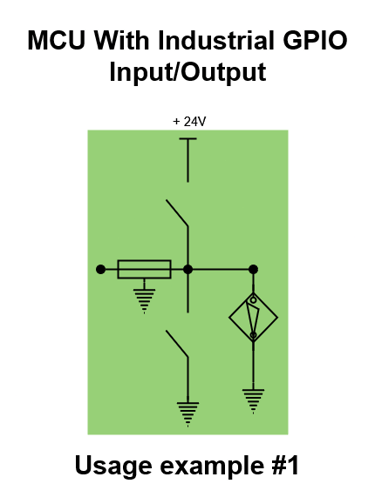

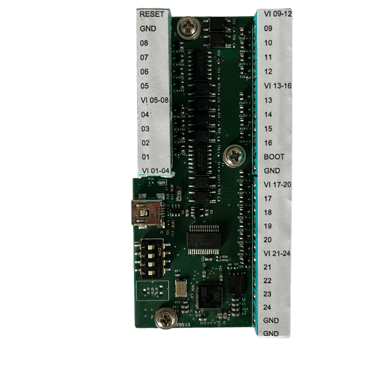

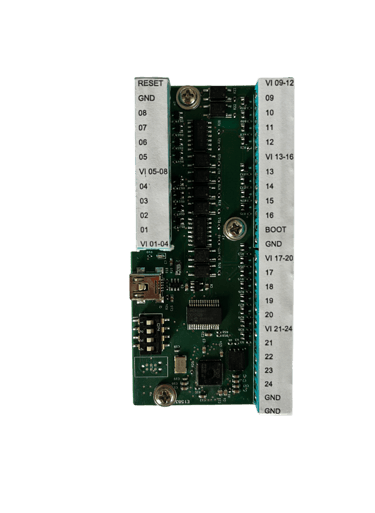

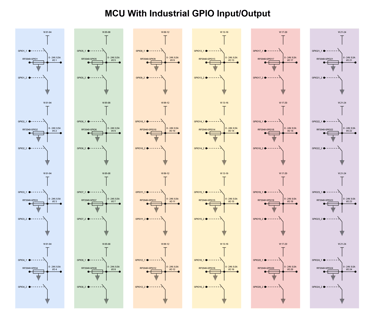

MCU With Industrial GPIO Input/Output

Durability

Designed for long-term operation in demanding environments, ensuring consistent performance and minimizing downtime

Flexibility

GPIO pins provide versatile input/output capabilities, allowing for seamless integration with a wide range of sensors, actuators, and other devices.

Programmability

Allows for customization and automation of complex tasks, enabling efficient and precise control over industrial processes

Wide Voltage Compatibility

Ensures compatibility with 3.3 - 24V range of industrial devices, reducing the need for separate power supplies and simplifying integration

Industrial Grade:

Built to withstand harsh industrial environments, including temperature extremes, vibration, and electromagnetic interference.

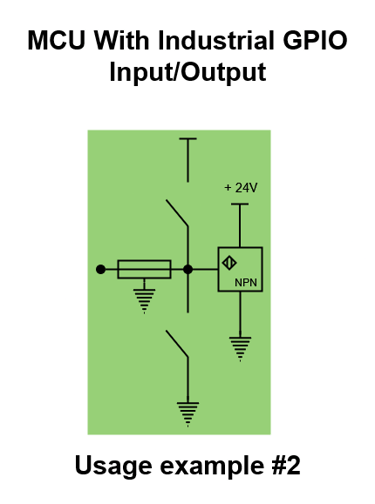

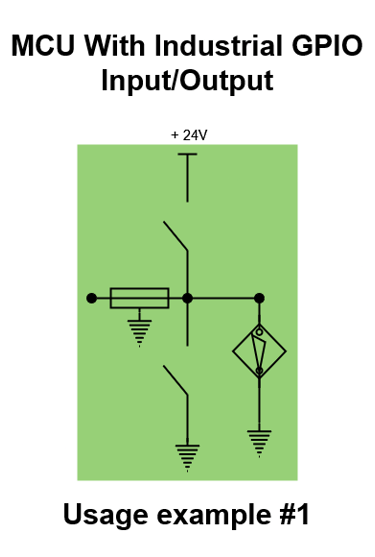

GPIO Interface:

Offers general-purpose input/output (GPIO) pins that can be configured for various purposes, such as:

Digital Input:

Reading signals from sensors or switches, including 24V sensors for industrial data acquisition.

Digital Output:

Controlling actuators, solenoids, or lights, supporting devices up to 24V.

Voltage Range:

Operates within a voltage range of 3.3-24V, compatible with a variety of industrial sensors and actuators.

Overvoltage Protection:

Built-in protection against overvoltage, ensuring the device's safety and reliability.

Programmability:

Allows users to program custom logic and control sequences using a programming language or software interface.

Communication Links:

Supports 3.3V I2C, SPI, and UART communication protocols, allowing for seamless integration with various industrial devices and networks.
